Skymear Cheap Triangle Lighting Truss 400x400mm comes with aluminum bolt connection with welds and in multiple sizes for lighting show and multiple applications, such as indoor and outdoor events, exhibitions, displays.
Skymear Medium Duty Triangle Lighting Truss Spigot 15.75”x 15.75" is another type of our durable truss systems, which has superior performance, durability and tongue connection and are ideal solutions for theater, concert, performance arts, or tradeshows, arenas and stadiums. This triangle lighting or stage truss allows lighting designers the freedom to hang LED where ever they choose, which has compact construction, optimum strength, high-tech appearance and outstanding weight loading capacities, and can be applied for all forms of rigging towers, exhibition gantries and large concert stages.
Specification:
Product name | : | Spigot Triangle Truss 400x400mm/15.75"x15.75" |
Model No. | : | TR400 |
Material | : | Aluminum alloy 6061-T6/6082-T6 |
Truss width | : | 400*400mm |
Standard shape | : | Triangle truss |
Special shape | : | Circle/Circular/Round/Arched/Curved truss, etc |
Main tube | : | 50*3.0 mm |
Brace tube | : | 25*2.0 mm |
Color | : | Silver, black or customized |
Color process | : | Powder coating and anodize coating are available |
Available length | : | 0.5m, 1m, 2m, 3m, 4m |
Application | : | Stage truss, staging truss, lighting truss, light truss, DJ truss, DJ trussing booth, DJ trade shows, exhibition truss, church, exhibition truss |
Connector | : | Conical coupler |
Features:
1) Compact, light self-weight
2) Great strength to weight ratio
3) Safe and big loading capacity
4) No deflection in connection points
5) Smooth Welding points
6) CE, SGS & TUV certificated

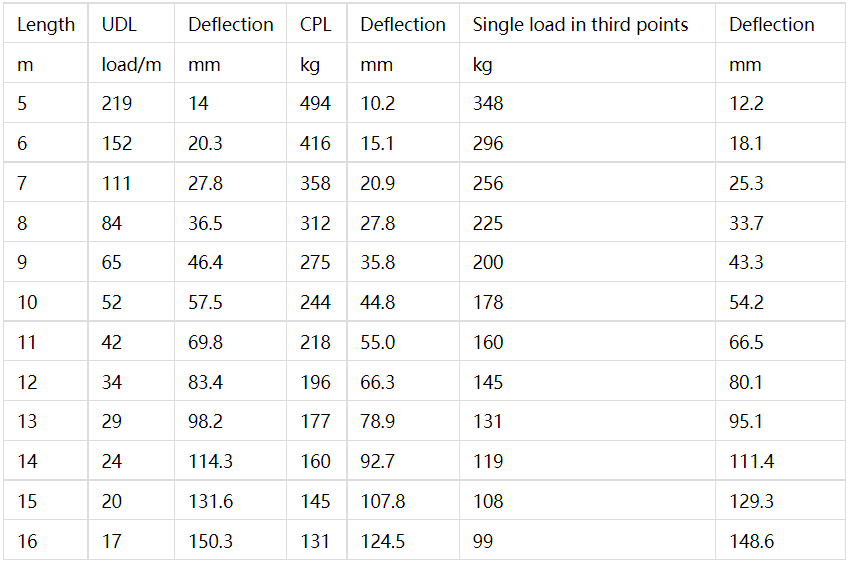

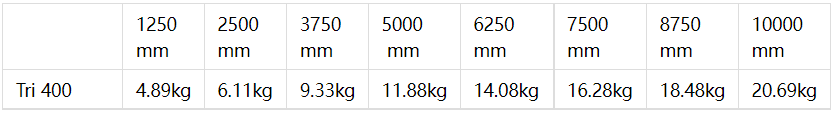

Standard lengths & weights:
Skymear Medium Duty Triangle Lighting Truss is typically fabricated from 2 inch round aluminum tubes referred to as chords. Truss sections generally consist of 2, 3 or 4 chords. Two chord light truss is often referred to as Ladder Truss, three chord truss are often referred to as Triangle Truss and four chords would be a box truss.
Segments:

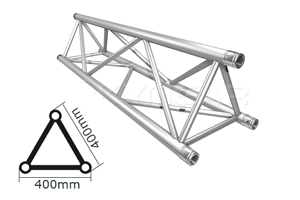

● Spigot Triangle Truss 400x400mm/15.75"x15.75"

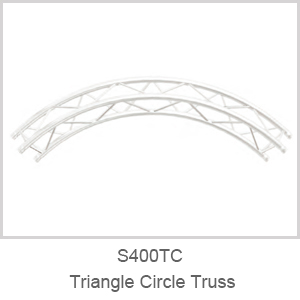

● Spigot Circle Triangle Truss 400x400mm/15.75"x15.75"

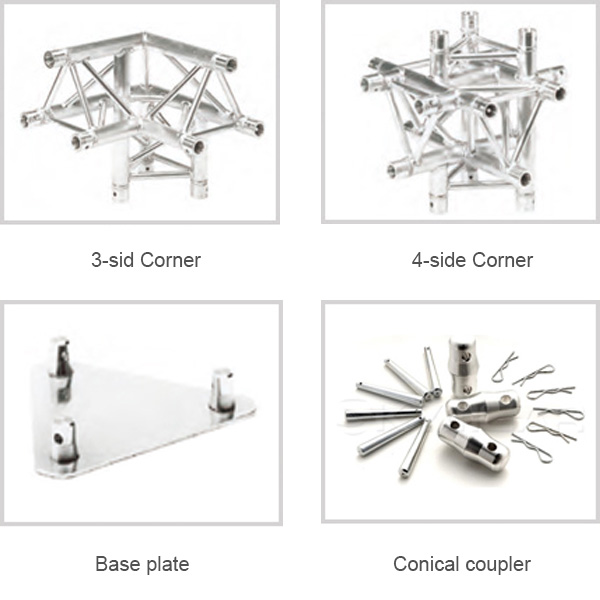

Accessories:
Skymear Medium Duty Triangle Lighting Truss comes in sectional lengths that may be connected together to create longer spans or different shapes. These truss structures are used to support lighting, audio and video equipment.
