Skymear mini truss system is very strong and has a beautiful finished display grade look when assembled and connected, which is widely used for small to medium shop fittings and exhibition stands.
Skymear Aluminum Mini Square Truss System 4"x 4" is constructed of main tubes of 20mm diameter & 2mm thickness and a brace of 5mm diameter, which is made of 6082-T6 aluminium material. As a series of light duty mini decorative box trusses for interior decoration, displays, stores and even cafes and restaurants, the mini truss is widely used for small to medium shop fittings and exhibition stands. It is popular for light weight applications such as recording studio speaker rigging, banner frames, exhibition stand buildings, as well as light weight lighting bar for stages.
Specification:
Product name | : | Spigot Truss 100x100mm/4"x4" |
Model No. | : | S100 |
Material | : | Aluminum alloy 6061-T6/6082-T6 |
Truss width | : | 100*100mm |
Standard shape | : | Ladder truss, Triangle truss, Square/Box truss |
Special shape | : | Circle/Circular/Round/Arched/Curved truss, etc |
Main tube | : | 20*1.6 mm |
Brace tube | : | 10*1.2 mm |
Color | : | Silver, black or customized |
Color process | : | Powder coating and anodize coating are available |
Available length | : | 0.5m, 1m, 2m, 3m, 4m |
Application | : | Stage truss, staging truss, lighting truss, light truss, DJ truss, DJ trussing booth, DJ trade shows, exhibition truss, church, exhibition truss |
Connector | : | Conical coupler |
Features:
1) Compact, light self-weight
2) Great strength to weight ratio
3) Safe and big loading capacity
4) No deflection in connection points
5) Smooth Welding points
6) CE, SGS & TUV certificated

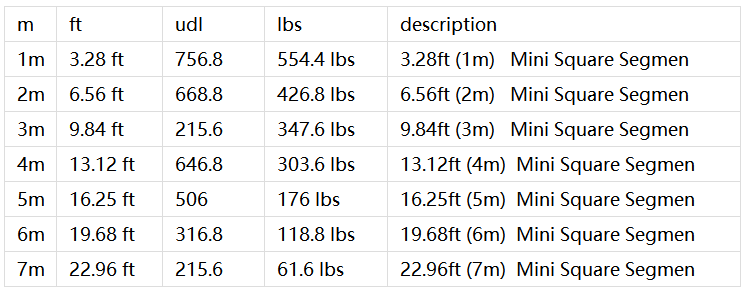

Standard lengths & weights:
So many users will be confused by the mini truss system name or size, and think the mini truss cannot load much weight. In fact, this is not the truth. Please refer to technical data sheet below for rated load at different spans. After checking, users will find the 100mm mini truss is applied very widely from small to medium events.
Segments:

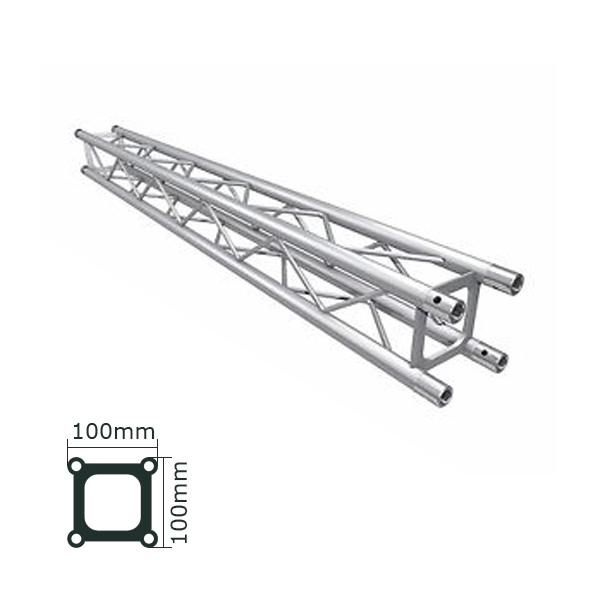

● Standard spigot Truss 100x100mm/4"x4"

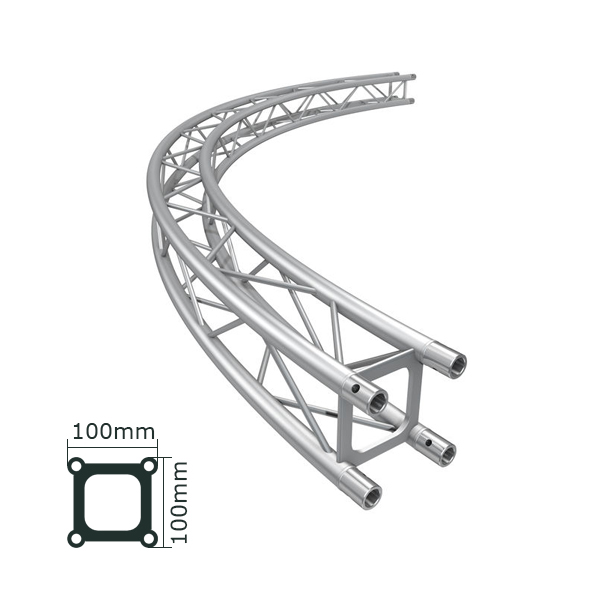

● Circle spigot Truss 100x100mm/4"x4"
Applications:

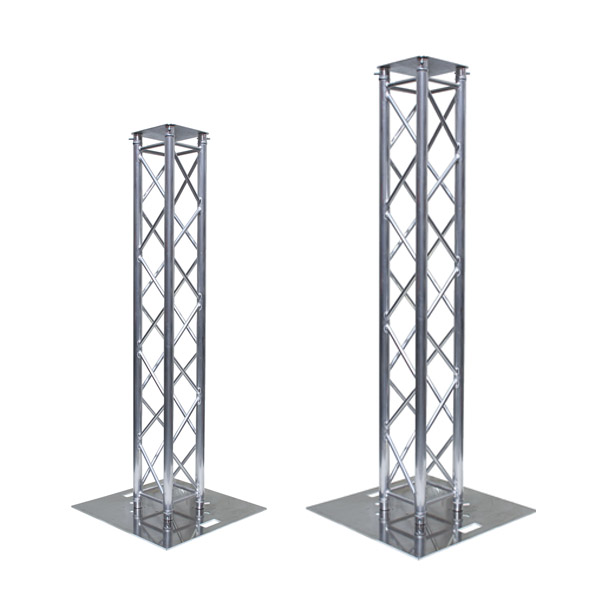

● S100GT-Glow totems

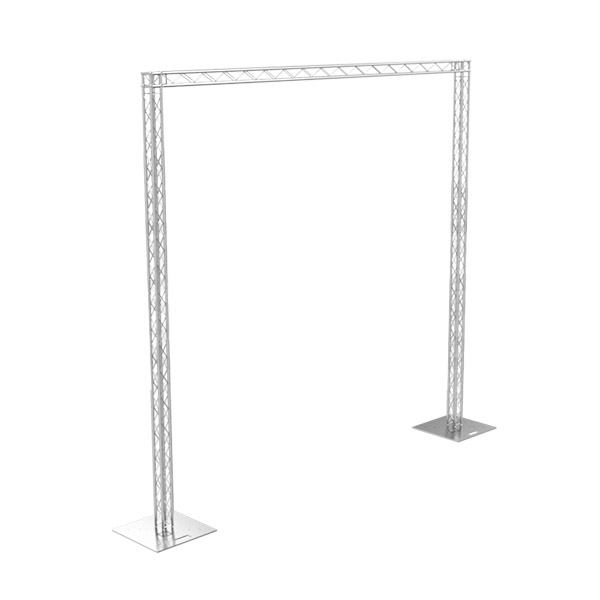

● S100CF-Screen frames
Accessories:

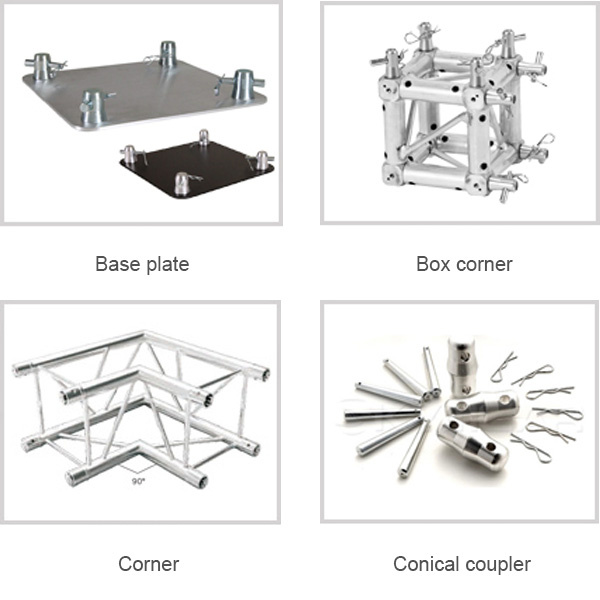

The 100mm mini box truss also comes with different standards lengths and is completely customizable to create different size and shapes, whose standard accessories include corner cubes, base plated, etc.
Skymear mini truss system is very strong and has a beautiful finished display grade look when assembled and connected, which is popular for all exhibition exhibit display booth or exhibit hall display for convention centers.
