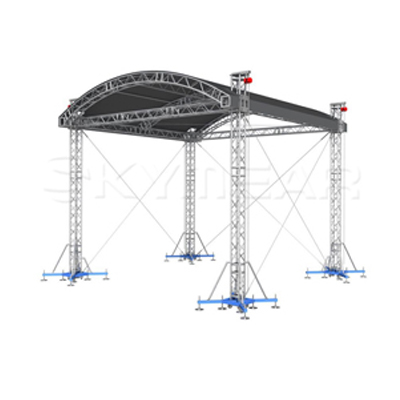

Skymear Arched Roof & Curved Truss Structure is one of the heavy duty durable stage roofing truss systems, which offers best solutions for festivals, party, exhibitions, displays and indoor & outdoor events.
Skymear Arched Roof Truss & Curved Truss Structure is tower-based aluminum stage truss system, which has superior performance,durability and tongue connection and are ideal solutions for mega-concerts,festivals,parties and other outdoor big events.This curved truss design features compact construction, optimum strength, high-tech appearance and outstanding weight loading capacities. The curved truss system gives it a dynamic look while contributing to efficient water drainage from the canopy. All our stage trusses are manufactured in different sizes, length and shapes from high-grade and lightweight aluminum, which are easy for transportation and setup, and are all according to European standard EN13814 and welding EN1090 and certificated by CE,TUV and SGS certifications.
All our aluminum stage truss roofs are made in China. We can do OEM for your customized service and provide our factory price directly to you.
Specification:
Product name | : | Aluminum truss arched roof 03 |
Model No. | : | Arched-Roof-3 |
Roof size | : | 8m*6m*6m |
Material | : | Aluminum alloy 6061-T6/6082-T6 |
Light-duty truss unit | : | 100*100mm, 150*150mm, 220*220mm |
Medium-duty truss unit | : | 300*300mm,400*400mm,450*450mm |
Heavy-duty truss unit | : | 520*520mm,600*700mm,600*900mm,670*1010mm |
Standard shape | : | Ladder truss, Triangle truss, Square/Box truss |
Special shape | : | Circle/Circular/Round/Arched/Curved truss, etc |
Truss unit size | : | 0.5m, 1m, 2m, 3m, 4m |
Main tube | : | 50*3 mm |
Brace tube | : | 30*2 mm |
Color | : | Silver, black or customized |
Color process | : | Powder coating and anodize coating are available |
Roof cover | : | PVC roof color and side walls available |
Application | : | Stage truss, lighting truss, light truss, DJ truss, mega-concerts, festivals, parties, aluminum truss, indoor & outdoor events, arched/curved truss system, etc. |
Connector | : | Conical Coupler/Bolted Screws |
Features:
1)Feature: Non rust, light weight, strong, easy to set up
2)Fast connection for quick, simple and secure assembly
3)Operated with manual chain block or electric chain hoist
4)Supplied complete with internal wind bracing wires & connection accessories
5)Integrated tower base / stage components available
6)PA wing options available on request
7)Full structural calculation report & build manual available
8)CE, SGS & TUV certificated
9)OEM/ODM services
Drawing:
Segments:
Skymear Arched Roof Truss & Curved Truss Structure is the tower-based truss structure without rings, which consists of truss sections,top section,sleeve block,basement, and hoists. It features incredible strength,stability and speedy construction,and is the best choice for rental companies.
a) Stage truss sections:
b) Tower systems
c) Accessories
Skymear Arched Roof Truss & Curved Truss Structure is the most professional choice for mega-concerts,festivals,party and other outdoor events.
