Skymear Rubber 3 Channel Cable Protector can effectively protect valuable cables and wires from damage caused by heavy-duty vehicle traffic. These cable ramps have been enlarged and strenthened on the rubber base and hinged rubber lid with diamond tread surfaces for enhanced foot and wheel traction. The lid with bright yellow color can increase the visibility for pedestrians and vehicles in high traffic areas. Multiple ramps can be linked together with the modular interlocking design connectors very easily and firmly. These Three-Channel Cable Protectors can extend to any necessary length with the connectors.

     * Protect cables and hoses up to 1.125"(28.58mm) in diameter

     * Support up to 24,000 lbs (10800 kg) per axle

     * Features three cable channels

     * All-weather yellow and black rubber construction weighs 30 lbs (13.8kg)

     * Male and female connectors

All our cable protectors are made in China. We can do OEM for your customized service and provide our factory price directly to you.

Features：

    1) Provide safe and easy crossing for pedestrian and vehicle in high traffic areas

    2) Support high loading capacity 24,000 lbs (10800 kg) per axle for heavy equipment

    3) Maximum traction with diamond tread on the non-slip surface

    4) Warning symbols molded into lid surface with universal safety bright yellow for high visibility

    5) T-connectors interlock modular ramps together firmly

Specifications：

    1) Overall Dimensions：39"(L)x12.2"(W)x1.97"(H)/1000mm(L)x310mm(W)x50(H)mm          2) Channel Dimensions：1.38"(W)x1.38"(H)/35mm(W)x35mm(H)

    3) Self-weight：30 lbs/13.8 kg

    4) Color: Yellow lid & Black ramp

    5) Material：Rubber

    6) Loading capacity：24,000 lbs/10800 kg per axle

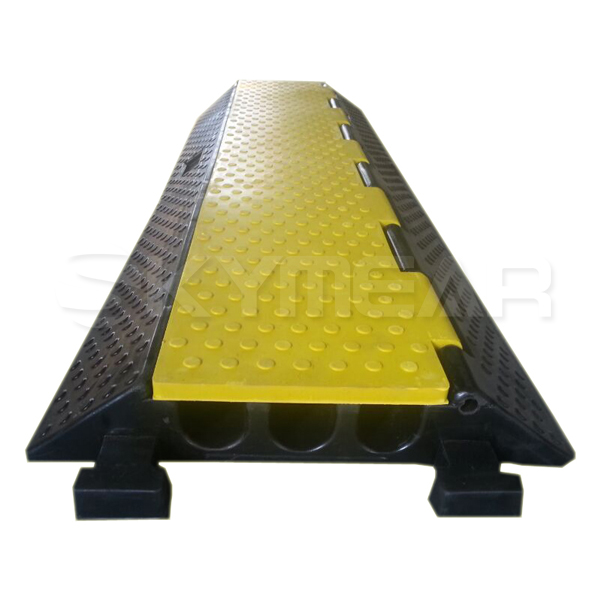

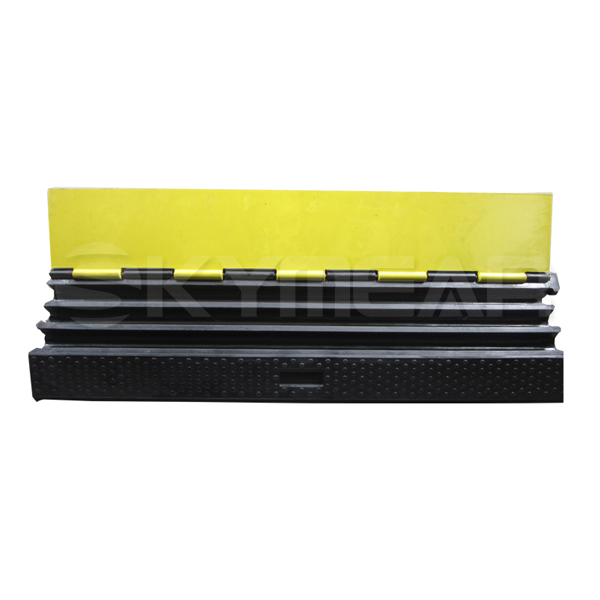

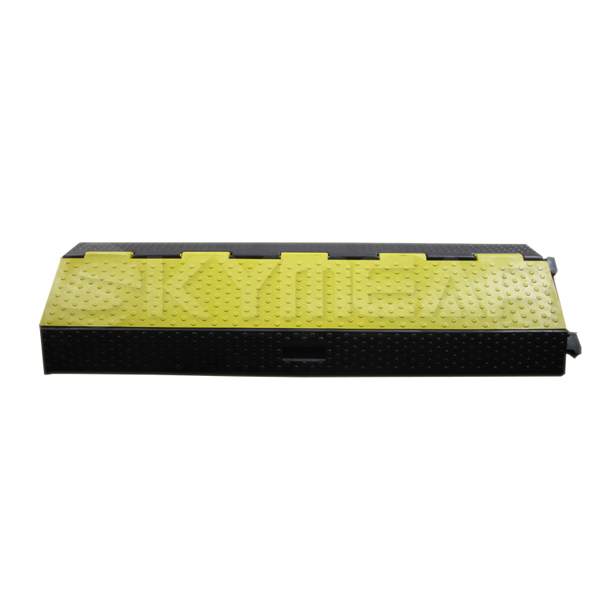

Photos:
