Skymear 2 Channel Drop Over Cable Protector can effectively protect cables and wires from damage caused by heavy equipment weighing up to 2,000 lbs (906kg) per axle while providing safe crossing in pedestrian areas. The polyurethane cable ramp is colored bright yellow for increased visibility and includes a raised three-bar surface design for enhanced traction. Multiple ramps can be linked together with the modular interlocking design connectors very easily and firmly. These One-Channel Cable Protectors can extend to any necessary length with the connectors.

    * Protect cables and hoses up to 4"(W)x1"(H)/100mm(W)x25mm(H)

    * Support up to 2,000 lbs (906kg) per axle

    * Features one cable channel

    * Industrial quality molded polyurethane construction weights 5.2 lbs (2.36kg)

    * Male and female connectors

All our cable protectors are made in China. We can do OEM for your customized service and provide our factory price directly to you.

Features：

    1) Provide safe and easy crossing for pedestrian in high traffic areas

    2) Support high loading capacity 2,000 lbs (906kg) per axle for heavy equipment

    3) Maximum traction with patented tread on the colored bright yellow ramp

    4) Colored bright yellow surface for increased visibility

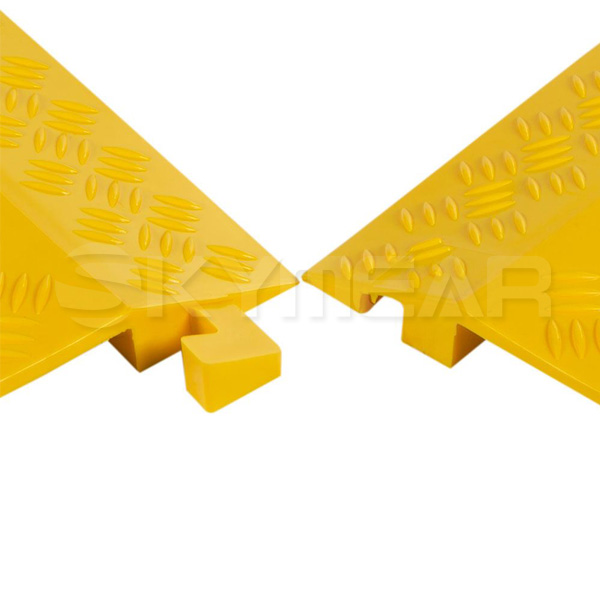

    5) L-connectors interlock modular ramps together firmly

Specifications：

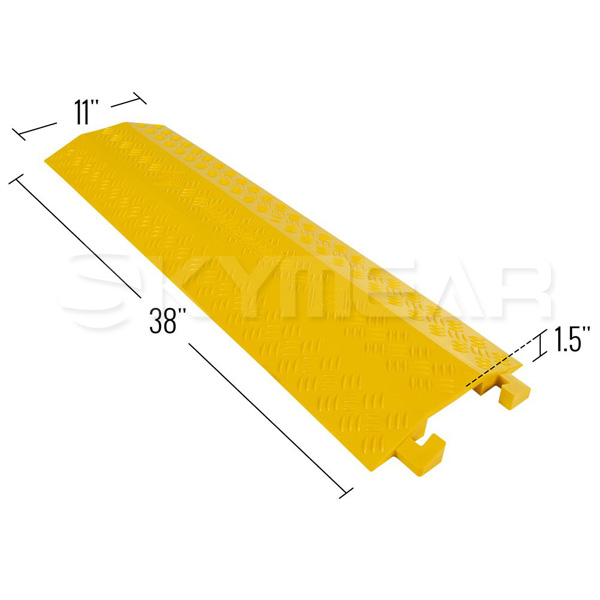

    1) Overall Dimensions：38"(L)x11"(W)x1.5"(H) /965mm(L)x280mm(W)x38(H)mm

    2) Channel dimensions：4"(W)x1"(H)/100mm(W)x25mm(H)

    3) Self-weight：5.2 lbs/2.36 kg

    4) Color: Yellow

    5) Material：Polyurethane (PU)

    6) Loading capacity：2,000 lbs/906 kg per axle

Photos:
